Green Grid Solution

Trunk Protecta®

The Trunk Protecta® has been developed to provide an easy-to-install and effective solution to protect the trunk from abrasion and accidental damage from vehicles and construction traffic. Trunk wounds that penetrate the bark will damage the cambium layer, a thin layer of vascular tissue, which is vital for the movement of water and nutrients around the tree.

The standard level of protection is 1.2m, a higher level protection can be achieved using the 1.8m variant. The product acts as an abrasion and impact resistant protective
barrier over the tree bark, stopping wounds and tear injuries that could allow disease and decay to enter the tree. The Trunk Protecta® is designed for use on trees at

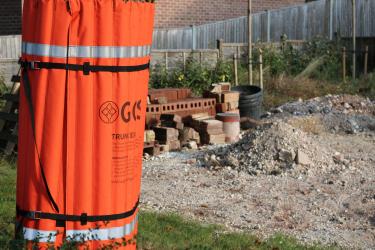

roadside site entrances, or on trees located near roadways with passing traffic. These are areas where it is not possible to fence off the tree, or where ground protection
and vehicles are present in the root protection area.

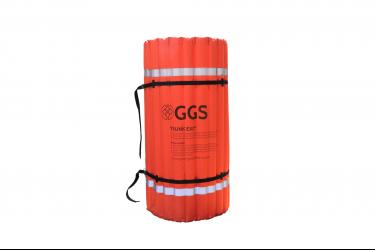

The Protecta is made from waterproof canvas to prevent the unit from holding water and starting rot. The canvas is hi-vis orange and banded with two stripes of reflective
tape to ensure it is highly visible, even in low light situations.
The Protecta can be used on trees with a diameter (DBH) between 30-60cm. Quick release straps enable the Protecta to be tightened for the smaller trees, and multiple Protectas can be used for trees with a circumference larger than 200cm.

Please call for bulk pricing, individual units can be ordered from Holm-Products here.

The Trunk Protecta's can be supplied with your own branding added, please call to discuss this.

Compliance

The Protecta is designed for use in conjunction with ground protection where the standard CEZ (construction exclusion zone) cannot be maintained and construction activity cannot be fully or permanently excluded from the RPA. (BS5837:2012 - clause 5.5.2)

It also meets 6.2.1.1 and 6.2.2.1 in the standard (extracts below).

6.2.1.1 All trees that are being retained on site should be protected by barriers and/or ground protection (see 5.5) before any materials or machinery are brought onto the site, and before any demolition, development or stripping of soil commences. Where all activity can be excluded from the RPA, vertical barriers should be erected to create a construction exclusion zone. Where, due to site constraints, construction activity cannot be fully or permanently excluded in this manner from all or part of a tree’s RPA, appropriate ground protection should be installed (see 6.2.3).
6.2.2.1 Barriers should be fit for the purpose of excluding construction activity and appropriate to the degree and proximity of work taking place around the retained tree(s). Barriers should be maintained to ensure that they remain rigid and complete.
